Longrun 750

Longrun is one of the most popular metal roofing profiles. It presents a striking appearance with efficient coverage that makes it an extremely economical and attractive solution for roofing and wall cladding in industrial, commercial and residential application.
Longrun available in aluzinc, galvanized steel or pre-painted galvanized steel of coatings. Its special anti-capillary features along side lap make it suited for several weather condition.

Longrun is available crimp curve which enhance the aesthetic appeal of any roof. These crimp curved profiles provide unparalleled scope for creating design of your building and is easy to install. Longrun is combines strength with lightness, rigidity and savings in contruction costs.

Recommended roof pitch for longrun 3

metal-roofing_03 metal-roofing_07

Clip Lock System 680mm

Clip lock system 680mm has been recognized as an excellent material of choice for long lasting and beautiful roofs. The lock-action design with concealed-fasterner system that make it both good looking and durable. The smart fluted pans and rid design enabling it to be used on a wide range of applications from low pitched roofs to vertical ribbed.

The deep rigid ribs allow safe and wide support spacing. Installation is simple and fast with clip system 680mm that can be lowered in place and easily aligned thereby providing time and cost saving during installation. The specially designed clip lock clip inter-locking the clip lock 680mm delivers a consistent and reliable performance.

Clip lock system 680mm can custom cut length according to order. On site roll forming service is available for roofing sheet which more than 100ft long.

Recommended roof pitch 3

metal-roofing_15 metal-roofing_17

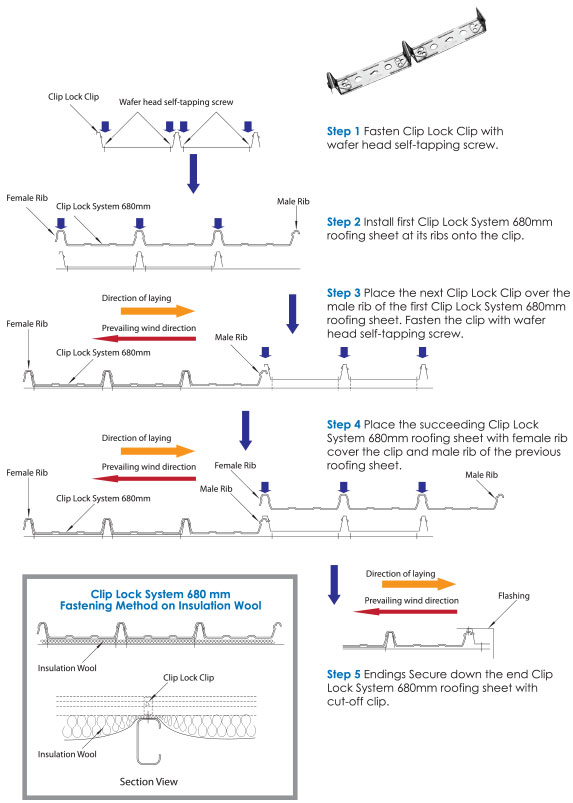

INSTALLATION PROCEDUCE
metal-roofing_20

Insulated Metal Roof

Axtrada insulated metal roof range offers three innovative options.
1) Axtrada PU Foam
2) Axtrada PE Foam
3) Axtrada Sandwich Panel

Advantages
1) Fast roof-laying process-very convenient , saves labour & fast completion.
2) Saves transportation costs.
3) Saves storage space.
4) Heat resistant-ability to prevent heat penetrationand maintain room temperature.
5) Lessens noise pollution.
6) Keeps out insects, bird and mice-there is no space for the creatures to hide and breed.
7) Dust free.
8) Water resistant-axtrada Pu foam is made of three types of water resistant materials and will not be spoilt by rain.
9) Smoke resistant.
10) Cut to size?Axtrada PU foam roof sheets can be cut to the exact size needed, thereby preventing wastage.

Axtrada PU Foam

Axtrad PU Foam is a complete insulation system using state-of-the-art technology to bind cfc-free
(PU) rigid polyurethane between high tensile pre-painted steel sheets and fire-retardant pvc
lamination into a single product.

Axtrada PE Foam

Axtrada Polyethylene (PE) Foam with aluminized film facing. The closed cell structure of across- linked pe foam promotes extremely low thermal conductivity for excellent heat insulation and inhibits moisture vapour permeability to maintain heat insulating properties over a long period of time. Pe foam is highly resistant to heat , adverse weather conditions and most chemicals.

The structural rigidity of Axtrada PE foam steel profile allows for long span leading to reduction of support members and providing net savings in the construction cost. With its special anti-capillary action side-lap and long length, Axtrada pe foam provides a leak-proof performance . The profile is also available in attractive crimp curve option.

Axtrada Sandwich Panel

Axtrada Sandwich Panel is using expanded polystyrene foam (EPS) as the core material of the panel. The EPS is the laminated with two layers of pre-painted galvanised steel sheet (PPGI) on the top and bottom surface. The PPGI used are strictly conformed to the international standard of JIS G3312. The process of lamination is performed through a roll-forming process that ensure strong adhesion and uniformity in design.

Axtrada sandwich panel comes in two types of design;
a) Wall panel ? I.E. Container wall panel, poultry farms , multipurpose halls , cold storage.
b) Roof panel

Both panel are designed with the interlocking system for fast and easy construction. All panels are produced in accordance to length requirement to minimize wastage and reduce on-site work. Colour coded accessories are also available to cover the joints and exposed opening.

The panel are light weight (7-9kg/rn2 for 50mm eps) and provide excellent heat and sound insulation. The used of PPGI as its facade ensure durability and ease of maintenance.

AXTRADA PU Foam are available in Lungrun 750mm & Cooldec Tile & 760mm Profile.

HEAT INSULATIONS COMPARISON BY THICKNESS FOR SAME EFFECT
MATERIAL THICKNESS(mm)
COOLDEC 18
POLYSTYRENE 40
MINERAL WOOL 45
CORK 50
FIBERBOARD 65
SOFTWOOD 140
COMMON BRICKS 860
SOLID EFFICIENCY
TEST ITEMS RESULT
USABLE TEMP. -196ºC -+150ºC
MODULUS OF ELASTICITY 20KG/CM
BENDING SOLIDITY 2.0-2.5KG
ADHESON 3KG/CM
COMPRESSIVE SOLIDITY 1.5-2.0KG/CM



PRODUCT SPECIFICATION
MATERIAL THICKNESS GRADE FINISHING COLOUR
STEEL SHEET 0.36-0.48MM TCT G550 GALVANISED & PPGI AS PER COLOUR CHAT
POLYURETHANE FOAM 50MM +/- CFC-FREE RIGID FOAM CREAM
PVC FOIL 0.07MM FIRE-RETARDANT GLOSSY & TEXURED WHITE



AXTRADA PE Foam are available in Longrun 750mm & Cooldec Tile 760mm Profile.

PRODUCT SPECIFICATION
MATERIAL THICKNESS GRADE FINISHING COLOUR
STEEL SHEET 0.36-0.48MM TCT G300 / G550 GALVANISED & PPGI AS PER COLOUR CHAT
POLYTHYLENE FOAM + ALUMINIZED POLYESTER FILM FACING 2MM 5 MICRONS EPOXY PRIMER / 20 MICRONS POLYESTER PAINT. SERVICE COATING 10 MICRONS. ZINC COATING Z18 SILVER COLOR



SOLID EFFICIENCY metal-roofing_24
TEST ITEMS RESULT
THERMAL CONDUCTIVITY 0.029KCAL/MH
DENSITY 0.025G/CM?
WATER RESISTANT YES
WEATHER PROOFING YES
CHEMICAL RESISTANT YES





Supreme prepainted steel is a high performance coating exploiting the long lasting performance with the advantages on excellent UV durability, chalking, gloss retention and corrosion resistance.
Typical usages Exterior building products, for example roofing, wall cladding, requiring incredible UV durability, low color?fading and gloss retention.
Standard JISG3312
Preferred sustrates Galvanized steel
Petreatment Anti-corrosion & activation coating
Primer coat Nominal film thickness 10µm topcoat, 5µm backcoat
Finish coat PVdF paint system in nominal film thickness 20µm
Backing coat Nominal film thickness 10µm
Colour Wide color range
Gloss Low gloss range
Dimensions BMT: 0.42-1.20mm, width: 914~1219mm, Zinc coating in minimum Z27
Resistance to dirt staining —————————————-
Performance Change in appearance Appearance of realcolor ™Supreme can change over time due to effect of tropical dirt staining. This may result changes not only in dirt pict up performance but also couse changes in gloss, chalking and fading of pigmentation.Colour change mostly is due to the change in pigmentation and this will rely on the series of colour chosen. Colour change shall be measured on the exposed painted surface that has been cleaned of surface dirt, chalk and foreign contaminants according to ASTM D-2244,Proper storage and installation of handling pre-painted product should be implement to prevent premature corrosion failures and prevent reduction of color stability.
Corrosion resistance Salt spray test l000hrs,Corrosion, blisters and loss of adhesion less than 3mm from scribe.
Chalking resistance QUV-A 2000hrs, Average color changes not more than 2 CIELab units.
Chemical resistance Paint film on realcolor ™Supreme is expected to has excellent resistance to hydrocarbon fuels, oils & lubricants.Immediate washing is recommended in order to maintainthe product performance.
Use under adverse conditions If it is intended to use realcolor™ Supreme product insevere condition such as heavily polluted industrial area, close to coast line (less than 100Cm). or have special circumstances not specifically referred to herein, please contact Axtrada (M) Sdn. Bhd. for specialised advice.



Typical properties

Test Result
T-bend 5Tmax
Pencil hardness F-2H
Cross-hatch 100/100
Solvent resistance 100 mm (for MEK DR)
Erichsen cupping test 3mm for SQ. 5mm for CQ
Reverse impact l0Joules (for BMt 0.42mm)
Salt spray test l000hrs (ASTM B117)
QUV-A 2000hrs (Gloss retension>80%. Average color change not more than 2 CIELab units.)



Product compliance test report

Test report Method of test
Fire test BS476: Part 6: 1989+A1: 2009 (Fire test on building materials and structures)
Part 6: Method of test for fire propagation for products.
BS476: Part 7: 1997 (Fire test on building materials and structures)
Part 7: Surface spread of flame test.
RoHS test RoHS Directive 2011 / 65/ EU Annex II
REACH test Candidate list of SVHC for authorization published by European Chemicals Agency (ECHA)





Thermoshieldwith the latest techology, coated with high durability resin and inorganic pigment to provide excellent IR reflectivity, more stable in UV Light & high heat resistance to reduce heat absorption.
Typical usages Various applications, specially for roofing which is required excellent durability, high heat resistance and dirt staning resistance.
Standard JIS G3312
Preferred sustrates Galvanized steel
Petreatment Anti-corrosion & activation coating
Primer coat Nominal film thickness 10µm topcoat, 5µm backcoat
Finish coat Super-durable polyester with inorganic pigments in nominal film thickness 20µm
Backing coat Nominal film thickness 7µm
Colour Limited 20 colors
Gloss Low gloss range
Dimensions BMT: 0.42-1.20mm, width: 914~1219mm, Zinc coating in minimum Z27
Resistance to dirt staining Coating surface with hydrophilic material provide the self-cleaning function that resulting the suface looks new and clean as dirt can be washed by rainwater Appendix A
Performance Change in appearance Appearance of realcolor™ Thermoshield can change over time due to effect of tropical dirt staining. This may result changes not only in dirt pict up performance but also couse changes in gloss, chalking and fading of pigmentation.Colour change mostly is due to the change in pigmentation and this will rely on the series of colour chosen. Colour change shall be measured on the exposed painted surface that has been cleaned of surface dirt, chalk and foreign contaminants according to ASTM D-2244,Proper storage and installation of handling pre-painted product should be implement to prevent premature corrosion failures and prevent reduction of color stability.
Corrosion resistance Salt spray test l000hrs,Corrosion, blisters and loss of adhesion less than 3mm from scribe.
Chalking resistance QUV-A 2000hrs, Average color changes not more than 2 CIELab units.
Chemical resistance Paint film on realcolor™ Thermoshield is expected to has excellent resistance to hydrocarbon fuels, oils & lubricants.Immediate washing is recommended in order to maintainthe product performance.
Use under adverse conditions If it is intended to use realcolor™Thermoshield product insevere condition such as heavily polluted industrial area, close to coast line (less than 100cm). or have special circumstances not specifically referred to herein, please contact Axtrada (M) Sdn. Bhd. for specialised advice.



Typical properties

Test Result
T-bend 5Tmax
Pencil hardness F-2H
Cross-hatch 100/100
Solvent resistance 100 mm (for MEK DR)
Erichsen cupping test 3mm for SQ. 5mm for CQ
Reverse impact l0Joules (for BMt?0.35mm)
Salt spray test l000hrs (ASTM B117)
QUV-A 2000hrs (Gloss retension>80%. Average color change not more than 2 CIELab units.)



Product compliance test report

Test report Method of test
Fire test BS476: Part 6: 1 989+A1: 2009 (Fire test on building materials and structures)
Part 6: Method of test for fire propagation for products.
BS476: Part 7: 1997 (Fire test on building materials and structures)
Part 7: Surface spread of flame test.
RoHS test RoHS Directive 2011 / 65/ EU Annex II
REACH test Candidate list of SVHC for authorization published by European Chemicals Agency (ECHA)



Appendix A- 5 years sample warranty

Color shade Value
Light (eg. Off White) Æ 7
Intermediate (eg. Beige) Æ 5
Dark (eg. Regal Blue) Æ 3





Primero is an economical pre-painted galvanized steel which provide good performance that widely used in building materials such as awning, roofing, cladding, wall panel, etc.
Typical usages General exterior uses, including roofing. wall cladding, garage doors, panel and etc.
Standard JIS G3312
Preferred sustrates Galvanized steel
Petreatment Anti-corrosion & activation coating
Primer coat Nominal film thickness 10µm topcoat, 5µm backcoat
Finish coat Super-durable polyester with inorganic pigments in nominal film thickness 20µm
Backing coat Nominal film thickness 7µm
Colour Wide color range
Gloss Wide color range
Dimensions BMT: 0.35?1.20mm, width: 914?1219mm, Zinc coating in minimum Z18
Resistance to dirt staining —————————————-
Performance Change in appearance Appearance of realcolor™ Primero can change over time due to effect of tropical dirt staining. This may result changes not only in dirt pict up performance but also couse changes in gloss, chalking and fading of pigmentation.Colour change mostly is due to the change in pigmentcilion and this will rely on the series of colour chosen. Colour change shall be measured on the exposed painted surface that has been cleaned of surface dirt, chalk and foreign contaminants according to ASTM D-2244.
Corrosion resistance Salt spray test l000hrs,Corrosion, blisters and loss of adhesion less than 3mm from scribe.
Chalking resistance QUV-A l000hrs, Average color changes not more than 2 CIELab units.
Chemical resistance Paint film on realcolor™ Primero is expected to has excellent resistance to hydrocarbon fuels, oils & lubricants.Immediate washing is recommended in order to maintainthe product performance.
Use under adverse conditions If it is intended to use reolcolor™ Primero product in severe condition such as heavily polluted industrial area, close to coast line (less than l000m), or have special circumstances not specifically referred to herein, please contact Axtrada (M) Sdn. Bhd. for specialised advice.



Typical properties

Test Result
T-bend 5Tmax
Pencil hardness 3H
Cross-hatch 100/100
Solvent resistance 100 mm (for MEK DR)
Erichsen cupping test 3mm for SQ. 5mm for CQ
Reverse impact l0Joules (for BMt?0.35mm)
Salt spray test l000hrs (ASTM B117)
QUV-A 2000hrs (Gloss retension>80%. Average color change not more than 2 CIELab units.)



Product compliance test report

Test report Method of test
Fire test BS476: Part 6: 1 989+A1: 2009 (Fire test on building materials and structures)
Part 6: Method of test for fire propagation for products.
BS476: Part 7: 1997 (Fire test on building materials and structures)
Part 7: Surface spread of flame test.
RoHS test RoHS Directive 2011 / 65/ EU Annex II
REACH test Candidate list of SVHC for authorization published by European Chemicals Agency (ECHA)



WARRANTY SAMPLE



MATERIAL STABDARD PPGI

-G30,+-0.32mm thk. TCT
-G28,+-0.36mm thk. TCT
-G26,+-0.43mm thk. TCT
-G26A,+-0.48mm thk. TCT
