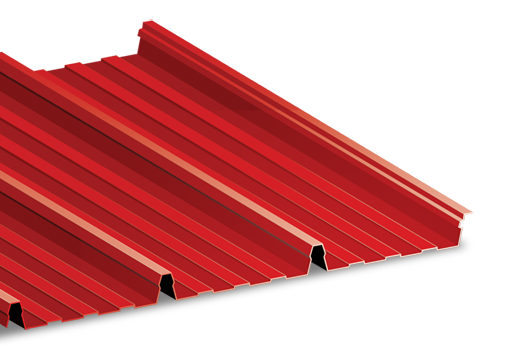

CLIP LOCK SYSTEM 680MM

CLIP LOCK SYSTEM 680MM

Axtrada Clip Lock System 680 has been recognized as an excellent material of choice for long lasting and beautiful roofs. The lock-action design with concealed-fastener system that make it both good looking and durable. The smart fluted pans and rib design enabling it to be used on a wide range of applications from low pitched roofs to vertical ribbed cladding.

The deep rigid ribs allow safe and wide support spacing. Installation is simple and fast with Axtrada CLIP LOCK SYSTEM.

Strength

  • Recognized as an excellent profile for long lasting and beautiful roofs.

  • The lock-action design with concealed- fastener system, looking and durable.

  • Strongly recommend low pitched roofs.

CLIP LOCK SYSTEM 680MM





Roof Pitch

  • The Minimum recommended roof pitch is 3º

For Color Coated Material

Thinkness Thinkness Weight Weight Cover Width Rib Height
BMT TCT (KG/M) KG/M² (MM) (MM)
0.38 0.42 3.18 4.73 680 40
0.42 0.48 3.41 5.07 680 40
0.48 0.53 3.78 5.63 680 40
